Product Summary

The B88069X8070B502 is a surge arrester, which is characterized by standard size, fast response time, very high current rating, stable performance over life, low capacitance, high insulation resistance and son. This device is widely used in line protection, station protection, base stations and more.

Parametrics

Electrical specifications: (1)DC spark-over voltage: 350 ... 550 V; (2)Impulse spark-over voltage at 100 V/μs:< 750 v for 99 % of measured values; < 700 v for typical values of distribution; (3)Impulse spark-over voltage at 1 kV/μs: < 850 v for 99 % of measured values; < 800 v for typical values of distribution; (4)Insulation resistance at 100 Vdc: > 10 GΩ; (5)Capacitance at 1 MHz:< 1.5 pF; (6)Transverse delay time: < 0.2 μs; (7)Arc voltage at 1 A:~ 30 v; (8)Glow to arc transition current:~ 1A; (9)Glow voltage:~ 200 V; (10)Weight: ~ 2.2 g; (11)Operation and storage temperature: -40 ... +90 °C; (12)Climatic category (IEC 60068-1): 40/ 90/ 21.

Features

Features: (1)Standard size; (2)Fast response time; (3)Very high current rating; (4)Stable performance over life; (5)Very low capacitance; (6)High insulation resistance; (7)RoHS-compatible.

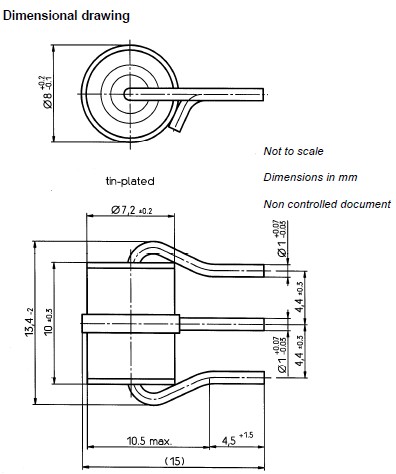

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
B88069X8070B502
B88069X8070B502

EPCOS

Gas Discharge Tubes (GDTs) / Gas Plasma Arrestors T23-A420X

Data Sheet

0-690: $0.89
690-1000: $0.85
1000-2000: $0.80
2000-5000: $0.79
