Product Summary
The HEDS-1500 is a fully integrated module designed for applications requiring optical reflective sensing. The module contains a 655 nm visible LED emitter and a matched I.C. photodetector. A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot 4.27 mm (0.168 in.) in front of the package. The output signal is a current generated by the photodiode.
Parametrics
Absolute maximum ratings:(1)Operating Temperature, TA: -20 to 70°C; (2)Storage Temperature, TS: -40 to 75°C; (3)Lead Soldering Temperature: 260°C for 10 sec.; (4)Average LED Forward Current, If: 50mA; (5)Peak LED Forward Current, Ifp: (data pending); (6)Reverse LED Input Voltage, Vr: 5 V; (7)Photodiode Bias (-V = forward bias), Vd: -0.3 to 7V.
Features
Features:(1)Focused Emitter and Detector in a Single Package; (2)655 nm Visible Emitter; (3)0.178 mm (0.007) Resolution; (4)TO-5 Miniature Sealed Package; (5)Photodiode Output.

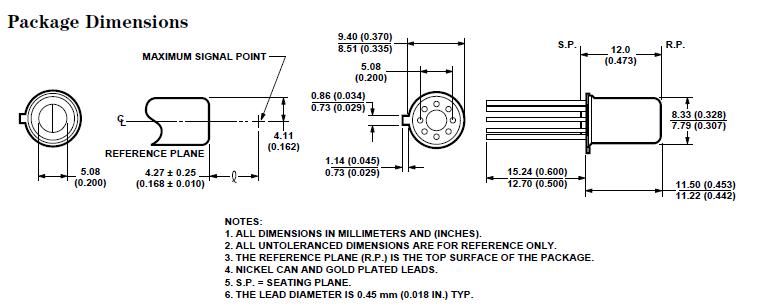

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HEDS-1500 |
Avago Technologies |
Optical Switches, Reflective, with Photo IC Output PRECISION OPT. REFLE CTIVE SENSOR |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
HEDS-1200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
HEDS-1300 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
HEDS-1500 |
Avago Technologies |
Optical Switches, Reflective, with Photo IC Output PRECISION OPT. REFLE CTIVE SENSOR |
Data Sheet |
Negotiable |
|
||||||||||||
|
HEDS-5120#A01 |
Avago Technologies |
Encoders 2 Channel 500CPR |
Data Sheet |
|
|
||||||||||||
|
HEDS-5120#A02 |
Avago Technologies |
Encoders 2 Channel 500CPR |
Data Sheet |
|
|
||||||||||||
|
HEDS-5120#A03 |
Avago Technologies |
Encoders 2 Channel 500CPR |
Data Sheet |
|
|
||||||||||||
