Product Summary

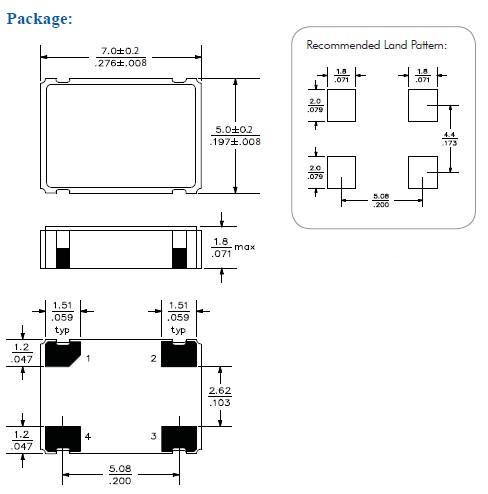

The S1613B-66.0000(T) is FN series crystal clock oscillator (XO). The FN series 3.3V crystal clock oscillator achieves superb jitter and stability over a broad range of operating conditions and frequencies. The output clock signal, generated internally with a non-PLL oscillator design, is compatible with LVCMOS/LVTTL logic levels. The device, available on tape and reel, is contained in a 7.0 x 5.0mm surface-mount ceramic package.
Parametrics
Absolute maximum ratings:(1)Storage Temperature: -55 to +125°C; (2)Output Frequency: 1 to 166MHz; (3)Supply Voltage: the min value is +2.97V, the typ is +3.3V, the max value is +3.63V; (4)Supply Current, Output Enabled: 15mA at the condition of 1 to 32MHz; (5)Supply Current, Output Enabled: 25mA at the condition of 32 to 50MHz; (6)Supply Current, Output Enabled: 40mA at the condition of 50 to 80MHz; (7)Supply Current, Output Enabled: 55mA at the condition of 80 to 166MHz; (8)Supply Current, Standby Mode: 10 μA at the condition of 1 to 36 MHz, 100 to 166 MHz; (9)Supply Current, Standby Mode: 100 μA at the condition of 36 to 70 MHz; (10)Frequency Stability: ±20 to ±50 ppm; (11)Operating Temperature Range: -20 +70°C, Commercial (standard); (12)Operating Temperature Range: -40 +85°C, Industrial (standard); (13)Output Logic 0, VOL: 10%VDD V; (14)Output Logic 1, VOH: 90%VDD V; (15)Output Load: 15pF; (16)Duty Cycle: 45 to 55%.
Features
Features: (1)1 to 166 MHz Frequency Range; (2)<1 ps RMS jitter; (3)3.3V CMOS/TTL compatible logic levels; (4)Pin-compatible with standard 7.0 x 5.0mm packages; (5)Designed for standard reflow and washing techniques; (6)Low power standby mode; (7)Pb-free and RoHS/Green compliant.
Diagrams
 |
