Product Summary
The SMS-1508-2-R is a surface mount speaker with 0.3w rated input power. Its output spl @ 0.3w/10cm(at 1.0, 1.2, 1.5, 2.0 khz) is 87 ± 3 dba. Its frequency ranges from 850 to 20,000 hz. What is more, the housing material of SMS-1508-2-R is PPS and the cone material is mylar , as well as the magnet material is smco
Parametrics
Specifications: (1)rated input power: 0.3 w; (2)max input power: 0.5 w; (3)impedance: 8 ± 15% ohm; (4)output spl @ 0.3w/10cm(at 1.0, 1.2, 1.5, 2.0 khz): 87 ± 3 dba; (5)distortion (max.): 10% ; (6)resonant frequency: 850 ± 20% hz; (7)frequency range: 850 ~ 20,000 hz; (8)housing material: pps; (9)cone material: mylar ; (10)magnet material: smco; (11)Operating temperature: -40 ~ +85 °c; (12)weight: 2.1 grams.
Features
Features: (1)rated input power: 0.3 w; (2)max input power: 0.5 w; (3)impedance: 8 ± 15% ohm; (4)output spl @ 0.3w/10cm(at 1.0, 1.2, 1.5, 2.0 khz): 87 ± 3 dba; (5)distortion (max.): 10%.

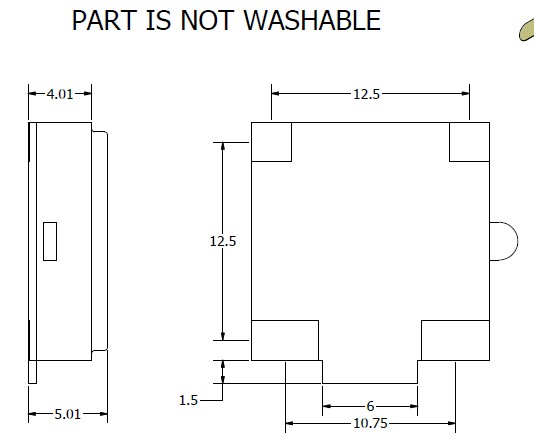

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMS-1508-2-R |
PUI Audio |
Speakers & Transducers .3W 850-20KHz 8 OHM |
Data Sheet |
|
|
||||||||||||
