Product Summary

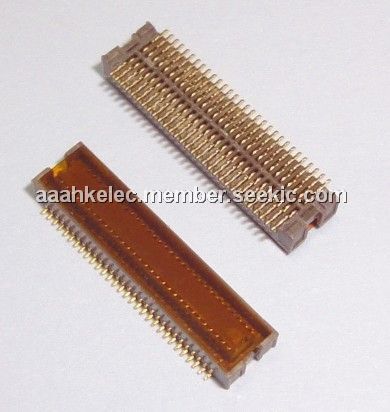

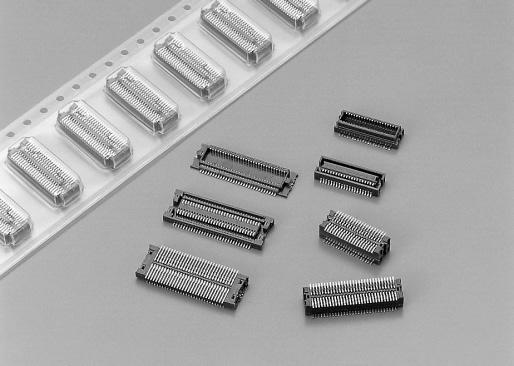

The 245087060900861+ belongs to series 5087. Series 5087 is the board to board, fine pitch connector which meets the requirement for high density circuitry in the market and designed especially for portable equipment. Mated height between boards can be 2.0mm or 2.5mm.
Parametrics
Specifications: (1)Series: 5087; (2)Mated Height: 2.0, 2.5mm; (3)Pitch: 0.5mm; (4)Current: 0.4A Max; (5)Voltage: 50V Max; (6)D.W. Voltage: 500V rms/min; (7)Mating Cycles: 30.
Features
Features: (1)5087 series is offered with strain relief, with or without vacuum tape; (2)Designed to have the strong resistance against torque forces on mating area to achieve the high reliability in the natural fall shock environment; (3)Parts are supplied in tape and reel with 1000 pieces per reel; (4)Contact sales office for details of other available pin counts.

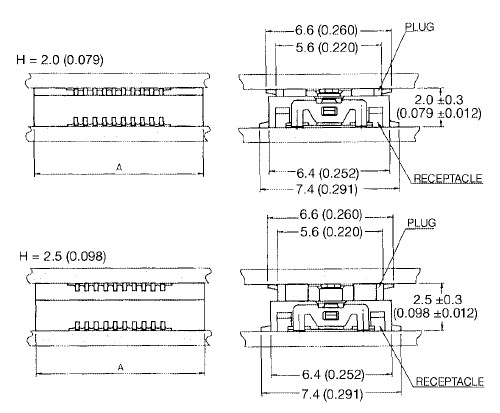

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 245087060900861+ |
AVX Connectors |
Board to Board / Mezzanine Connectors 60P RECEPTACLE |
Data Sheet |
|
|
||||||||||||
