Product Summary

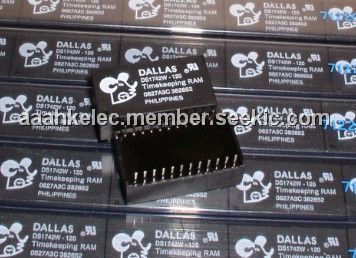

The DS1742W-120 is a full function, year 2000-compliant (Y2KC), real-time clock/calendar (RTC) and 2k x 8 non-volatile static RAM. The Real Time Clock (RTC) information and control bits reside in the eight uppermost RAM locations. The RTC registers contain century, year, month, date, day, hours, minutes, and seconds data in 24-hour BCD format. Corrections for the day of the month and leap year are made automatically.
Parametrics
Absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature: 0°C to 70°C; (3)Storage Temperature: -20°C to +70°C; (4)Soldering Temperature: See J-STD-020A Specification.
Features
Features: (1)Integrated NV SRAM, real time clock, crystal, power-fail control circuit and lithium energy source; (2)Clock registers are accessed identical to the static RAM. These registers are resident in the eight top RAM locations; (3)Century byte register; (4)Totally nonvolatile with over 10 years of operation in the absence of power.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1742W-120 |
Maxim Integrated Products |
Real Time Clock Timekeeping NV RAM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DS1742W-120+ |
Maxim Integrated Products |
Real Time Clock Timekeeping NV RAM |
Data Sheet |
|
|
||||||||||||
