Product Summary

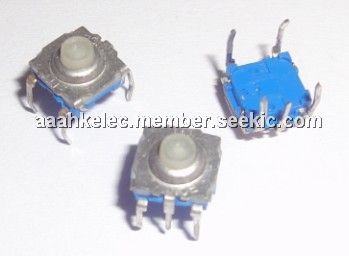

The KSA1M210 is a sealed tact switch processed by wave soldering compatible with lead free soldering profile. It Can be delivered in tubes of 65 pieces for automatic insertion or in boxes of 500 pieces for manual insertion. This device is applied in automotive, industrial, telecommunication networks and so on.
Parametrics
Electrical ratings: (1)maximum power: silver:1 va, gold: 0.2 va; (2)maximum voltage: silver: 32 vdc, gold:32 vdc; (3)minimum voltage: silver: 20 mv, gold:20 mv; (4)maximum current: silver: 50 ma, gold:10 ma; (5)minimum current: silver:1 ma,gold: 1 ma; (6)dielectric strength: 300 vrms; (7)contact resistance: < 100m Ω; (8)insulation resistance (100 v): > 109 Ω; (9)bounce time: < 1 ms.
Features
Features: (1)Designed for automatic or manual insertion; (2)Cambered terminals to ensure self retention; (3)Top or side actuated; (4)Large choice of caps; (5)RoHS compliant and compatible.

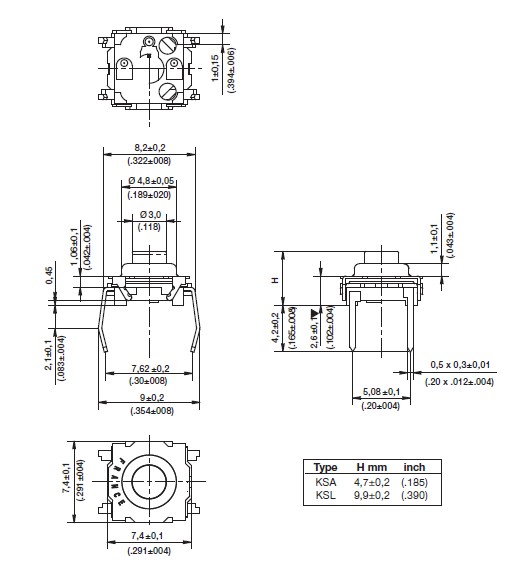

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KSA1M210 |
|
SWITCH TACTILE SPST-NO 0.05A 32V |
Data Sheet |
Negotiable |
|
||||||||||||
