Product Summary

The UHE1H471MHD3 is a aluminum electrolytic capacitor with low impedance and high reliability withstanding 4000 hours to 10000 hours. Some technical specifications of the product are as follows: (1)Capacitance: 470 μF; (2)Equivalent Series Resistance (ESR): 170 mΩ; (3)Size-Diameter: 16.0 mm; (4)Size-Height: 15.0 mm; (5)Voltage Rating (DC): 50.0 V; (6)Capacitance Tolerance: -20.0 % to 20.0 %; (7)Operating Temperature: 105 °C (max); (8)Dielectric Material: Aluminum Electrolytic; (9)Lead-Free Status: Lead Free; (10)Mounting Type: Through Hole; (11)Packaging: Bulk.

Parametrics

Specifications: (1)Category Temperature Range:–40 to +105°C; (2)Rated Voltage Range: 6.3 to 100V; (3)Rated Capacitance Range: 0.47 to 18000μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20°C; (5)Leakage Current: After 2 minutes application of rated voltage, leakage current is not more than 0.01CV or 3 (μA), whichever is greater.

Features

Features: (1)Low impedance and high reliability withstanding 4000 hours to 10000 hours; (2)Compliant to the RoHS directive (2002/95/EC).

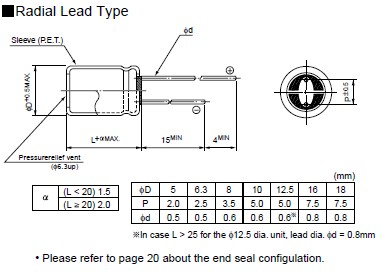

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHE1H471MHD3
UHE1H471MHD3
Nichicon
Aluminum Electrolytic Capacitors - Leaded 50volts 470uF 16x15 20% 7.5LS
Data Sheet
0-1: $1.03
1-10: $0.79
10-100: $0.51
100-500: $0.44
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UHE1A101MDD
UHE1A101MDD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 100uF 5x11 20% 2LS
Data Sheet
0-1: $0.13
1-10: $0.08
10-100: $0.06
100-500: $0.05
UHE1A101MDD1TD
UHE1A101MDD1TD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 100uF 10V 105c PET
Data Sheet
0-1: $0.13
1-2000: $0.03
2000-4000: $0.03
4000-10000: $0.03
UHE1A101MDT
UHE1A101MDT

CAP ALUM 100UF 10V 20% RADIAL
Data Sheet
0-4000: $0.03
UHE1A102MPD
UHE1A102MPD
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF 8x20 20% 3.5LS
Data Sheet
0-1: $0.49
1-10: $0.35
10-100: $0.20
100-500: $0.17
UHE1A102MPD6
UHE1A102MPD6
Nichicon
Aluminum Electrolytic Capacitors - Leaded 10volts 1000uF 10x16 20% 5LS
Data Sheet
0-1: $0.40
1-10: $0.28
10-100: $0.16
100-500: $0.14
UHE1A102MPT
UHE1A102MPT

CAP ALUM 1000UF 10V 20% RADIAL
Data Sheet
0-1400: $0.08
