Product Summary

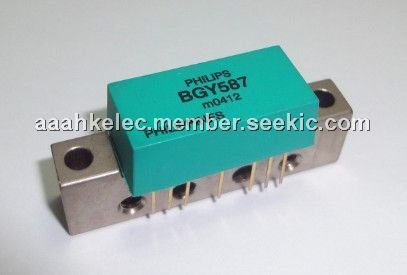

The BGY587 is a Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of 24 V (DC). With excellent linearity, extremely low noise, silicon nitride passivation, rugged construction, optimal reliability, this device is intended for use as a final amplifier.
Parametrics
Absolute maximum rating: (1)Vi, RF input voltage: 65 dBmV max; (2)Tstg, storage temperature: -40 to +100 °C; (3)Tmb, operating mounting base temperature: -20 to +100 °C; (4)SL, slope cable equivalent at f = 40 to 550 MHz: 0.2 to 1.5 dB; (5)FL, flatness of frequency response at f = 40 to 550 MHz: ±0.2 dB max.
Features
Features: (1)excellent linearity; (2)extremely low noise; (3)silicon nitride passivation; (4)rugged construction; (5)TiPtAu metallized crystals ensure optimal reliability.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BGY587 |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV-MOD |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BGY587,112 |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV-MOD |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BGY587B |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BGY587B,112 |
![]() NXP Semiconductors |
![]() RF Amplifier BULK CATV |
![]() Data Sheet |
![]()
|
|
